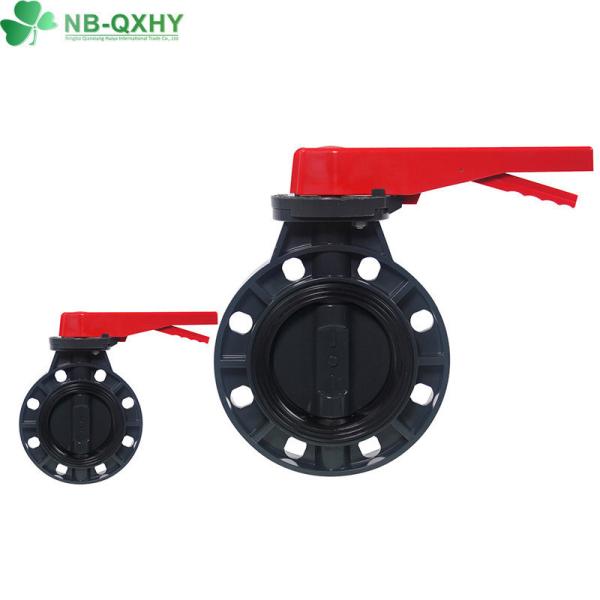

EPDM Rubber Seat Sea Water PVC Manual Flange Butterfly Valve Ffor water supply

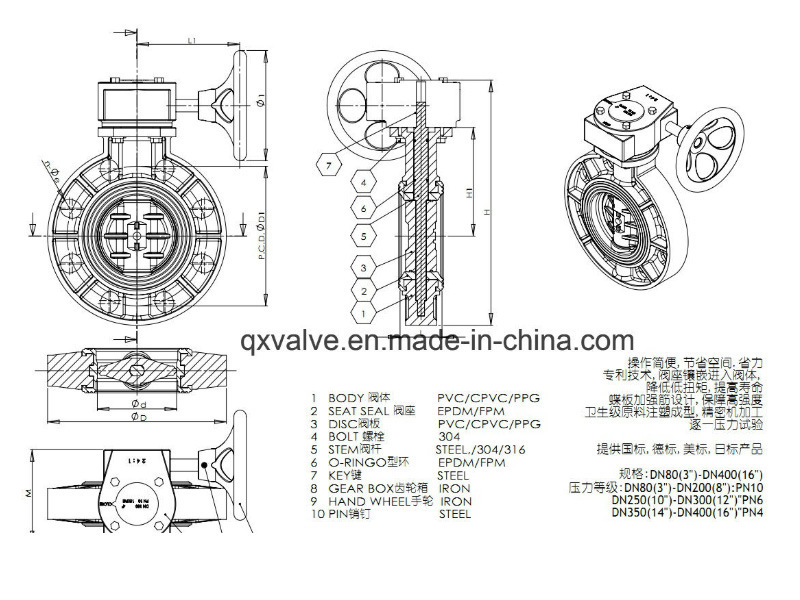

| NO. | PART | MATERIAL | QTY | PART | MATERIAL | QTY |
| 1 | Body | PVC | 1 | SMALL HANDLE | ABS | 1 |
| 2 | Seat Seal | EPDM, FPM(NBR) | 1 | SPRING | SS304, 316 | 1 |
| 3 | Gate | PVC | 1 | PIN | SS304, 316 | 1 |
| 4 | Stem | STEEL, SS304, SS316 | 1 | BOLT | SS304, 316 | 1 |
| 5 | O-Ring | EPDM, FPM(NBR) | 1 | HANDLE CAP | ABS | 1 |
| 6 | Washer | ABS | 1 | INSERED BOLT | SS304, 316 | 4 |
| 7 | Locking Plate | PVC | 1 | BOLT CAP | PVC | 4 |
| 8 | Large Handle | ABS | 1 | | | |
PVC Materials:
1.Light weight
2.Poor resistance to high temperature ,waterproof and moisture-proof
3.Flame retardant and heat insulation
| SIZE | SETS/CTN | KG/PC | N.W. | G.W. | MEAS. cm | VOL. |
| KGS | KGS | L | W | H | M3 |
| DN80-3'' | 4 | 5.25 | 21 | 22 | 40 | 34 | 24 | 0.0326 |
| DN100-4'' | 5.75 | 23 | 24 | 40 | 34 | 24 | 0.0326 |
| DN125-5'' | 2 | 11 | 22 | 23 | 41 | 31 | 29 | 0.0369 |
| DN150-6'' | 12 | 24 | 25 | 41 | 31 | 29 | 0.0369 |
| DN200-8'' | 1 | 18 | 18 | 19 | 49 | 36 | 18 | 0.0318 |
| DN250-10'' | 23 | 23 | 25 | 60 | 43 | 22 | 0.0568 |
| DN300-12'' | 25 | 25 | 27 | 65 | 52 | 22 | 0.0744 |
| DN350-14'' | 28 | 28 | 30 | 65 | 52 | 22 | 0.0744 |
| DN400-16'' | 45 | 45 | 50 | 85 | 65 | 27 | 0.1492 |
A: Advantage (1) High pressure can stand: PN10, PN16, PN35, PN40; 150psi, 235psi etc, as customers' request;
(3)Environment friendly, non-toxic, good looking and long service life;
(4) Light weight, easy to handle and transport;
(5) Soft colors and excellent design, suitable for installation either exposed or hidden;
(6)Wonderful ability in chemical corrosion resistance;
(7) Easy and fast installation, making cost minimized
(8) Widely used in building, irrigation, industry and swimming pool
(9)Small order acceptable;
(10) Customer's design and logo are welcome.
B Why choose QX?
(1) We provide OEM service and submit Various styles, latest designs to our clients;
(2) We work with big customers in Southeast Asia, Africa, Middle east, North America, South America;
(3) According to the needs of customers in different regions, we match different quality and thickness
valves with various styles, so that our customers are very competitive in the market!
(4)Our high quality PVC valve can be consistent with European and American national brand valves!
(5) We have great experience on providing high quality products and most professional service to
clients about 10 years more!

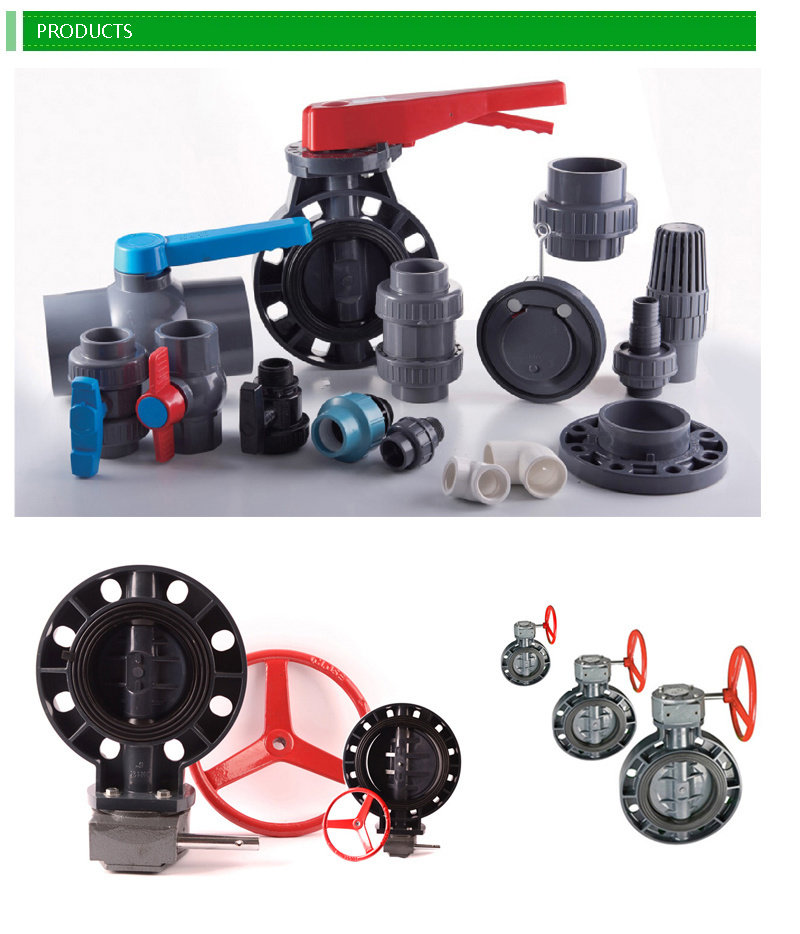

(6). Customers choose our products, can mix and match our PVC pipe fittings, PVC butterfly valves,
PP Fittings, irrigation products to buy together, so that the customer product line is more abundant,
both quality and delivery time are guaranteed.
(7) We can flexible from China any port export ! Welcome you inquiry us!
